Full Automatic Snack Food Potato Chips high Speed Weigher Vffs Filling Vertical Vacuum Bag Packing Machine

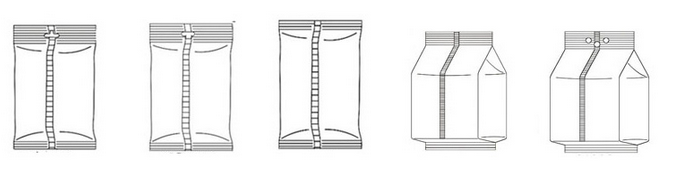

Type of packaging
According to customer needs, the bag type can be changed: back seal,three-side seal, four-side seal.
Parameters
|
Technical Specification |
|||
| Model | ZH-180PX | ZL-180W | ZL-220SL |
| Packing Speed | 20-90Bags / Min | 20-90Bags / Min | 20-90Bags / Min |
| Bag size(mm) | (W) 50-150(L) 50-170 | (W):50-150(L):50-190 | (W) 100-200(L) 100-310 |
| Bag making mode | Pillow bag, Gusset bag , Punching bag, Connecting bag | Pillow bag, Gusset bag , Punching bag, Connecting bag | Pillow bag, Gusset bag , Punching bag, Connecting bag |
| Maximum width of packing film | 120-320mm | 100-320mm | 220-420mm |
| Thickness of film (mm) | 0.05-0.12 | 0.05-0.12 | 0.05-0.12 |
| Air consumption | 0.3-0.5m3/min 0.6-0.8MPa | 0.3-0.5m3/min 0.6-0.8MPa | 0.4-0.m3/min 0.6-0.8MPa |
| Packing Material | laminated film such as POPP/CPP, POPP/ VMCPP, BOPP/PE, PET/ AL/PE , NY/PE, PET/ PET |
laminated film such as POPP/CPP, POPP/ VMCPP, BOPP/PE, PET/ AL/PE , NY/PE, PET/ PET |
laminated film such as POPP/CPP, POPP/ VMCPP, BOPP/PE, PET/ AL/PE , NY/PE, PET/ PET |
| Power Parameter | 220V 50/60Hz 4KW | 220V 50/60Hz 3.9KW | 220V 50/60Hz 4KW |
| Package Volume (mm) | 1350(L)×900(W)×1400(H) | 1500(L)×960(W)×1120(H) | 1500(L)×1200(W)×1600(H) |
| Gross Weight | 350kg | 210kg | 450kg |
Machine Introduction
Just set the parameters on the screen,and you can start the machine. Put the product into the hopper,the machine will automatically pull the film,the bag is formed, sealed, and finally the bag is cut.
01 Easy to control touch screen
Standard English and Chinese.Other language can be customized
PLC: Imported PLC micro computer with interface and frequency control makes bag parameter setting more convenient and easy
02 Film Roller
The film can be replaced easily on the film roller.
03 Measuring cup
304 stainless steel measurement parts will measure the weight of each bag automatically.
04 Bag Former
304 stainless steel bag formelis forshaping the film into a bag
Different bag width needs different bag former.
FAQ
Q1:Do you have manual or operation video for us to know more about the machine?
Yes, not only manual or operation video, 3D drawing also available to make as per your design,also the video we can make of testing the material from our packaging machine if your packing goods easier for us to find from our local market.
Q2:How can I trust you for the first time business ?
Please note our above business license and certificate. And if you don’t trust us, then we can use Alibaba trade assurance service, guarantee your money, and guarantee your machine’s on-time delivery and machine quality.
Q3:Is engineer available to serve oversea?
Yes, but it has to be paid for. So actually to save your cost, we will send you a video of full details machine installation and assist you till the end.
Q4:How can we make sure about the machine quality after we put the order?
Before delivery, we will send you the pictures and videos for you to check the quality, and also you can arrange for quality checking by yourself or by your contacts in China.
Q5:Will you provides the door to door service?
Yes. Please offer us your final destination, we will check with our agent to see if it available, and most of the area is ok for us to clearing and sending in your countries.
