High Speed Adjustable Top Bottom Tape Electric Stable Automatic Cartons Boxes Box Sealer Carton Sealing Machine


  • Brand:

    ZON PACK

  • Machinery Test Report:

    Provided

  • Driven Type:

    Electric

  • Details



    Snipaste_2023-09-28_15-05-20

    ZON PACK carton sealing machine is mainly applicable to the sealing of cartons. It is used in combination with carton forming and unpacking machines, packing machines, labeling machines, carton stacking machines, conveyors, and other equipment.

    Specification

    Model ZH-GPA-50 ZH-GPC-50 ZH-GPE-50P
    Conveyor speed 18m/min
    Power Supply 110/220V 50/60Hz 1Phase
    Adhesive Tape Width 48/60/75mm
    Discharge table height 600+150mm
    Carton Size Range L:150-∞ W:150-500mm H:120-500mm L:200-600mm W:150-500mm H:150-500mm L:150-∞ W:180-500mm

    H:150-500mm

    Power 240W 420W 360W
    Machine Size L:1020mm W:850mm H:1350mm L:1770mm W:850mm H:1520mm L:1020mm W:900mm H:1350mm
    Machine Weight 130kg 270kg 140kg

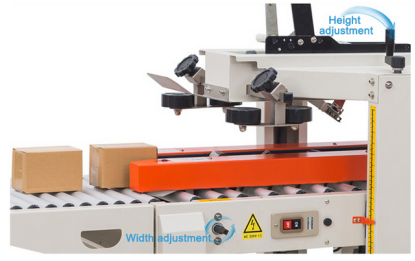

    Frame

    Free adjustment of packaging size

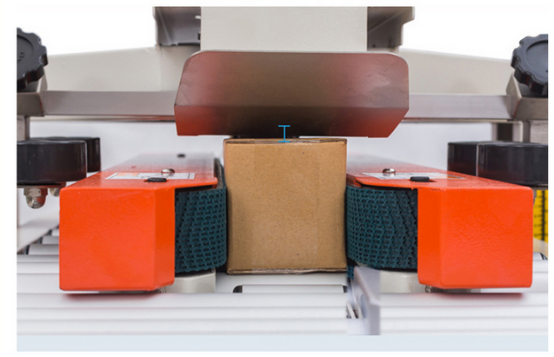

    Guide plate

    The two vehicles are stepped up and equipped with guide plates.

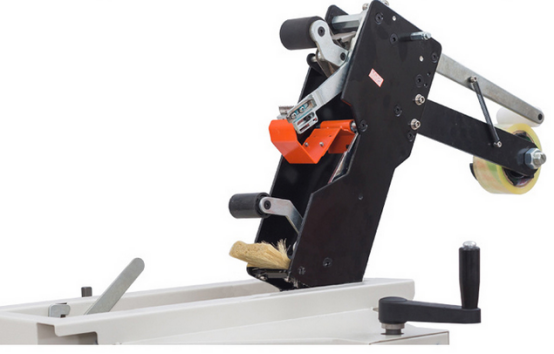

    Sealing head

    The sealing head can be erected, and it is convenient to replace the tape.

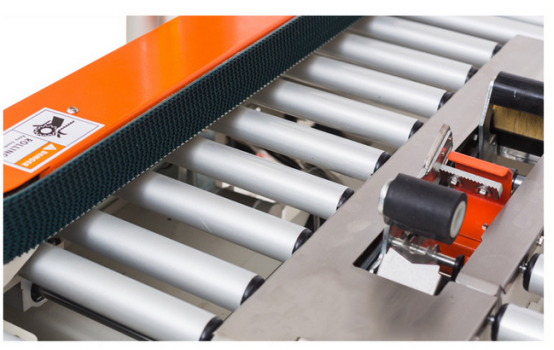

    Conveyor roller

    Dense conveying roller, suitable for small carton, conveying more smoothly.
