Application
Dosing and weighing of grain, chip, bar or irregular shaped material such as candy, sunflower seed, potato chip, happy fruit, peanut, jelly, freezing rice dumpling, biscuit, chocolate, nut, pet food, puffed food, small metal parts and plastic parts, etc.
Main Features
* Select the optimum combination immediately from plenty weighing combinations by powerful software.
* Adopt high precision digital weighing load cell and A/D module to get preciser weighing than before.
* Operating display with multiple languages such as English, Russian, German, Spanish,Italian, etc.
* The powerful ability of Automatic Feeder Control to make the machine self-adjusting during running.
* Provided with strong operation menu to make you study and operate more easily. Powerful automatic data statistical function.
* Strong compatibility and more compact structure with it directly installed on the upper part of packing machine.
* Fast return for investment by largely saving large quantity of raw material and labor cost.
Technical parameter
Linear weigher just suitable for Sugar,Salt,Seeds,Spices,Coffee,Beans,Tea,Rice,Feedstuff,Small pieces,Pet food and other powder,Small granules,Pellets products.
|
|||
Model
|
ZH-A4 4 heads linear weigher
|
ZH-AM4 4 heads small linear weigher
|
ZH-A2 2 heads linear weigher
|
Weighing Range
|
10-2000g
|
5-200g
|
10-5000g
|
Max Weigh Speed
|
20-40 Bags/Min
|
20-40 Bags/Min
|
10-30 bags/min
|
Accuracy
|
±0.2-2g
|
0.1-1g
|
1-5g
|
Hopper Volume (L)
|
3L
|
0.5L
|
8L/15L option
|
Driver Method
|
Stepper motor
|
||
Interface
|
7″HMI
|
||
Power Parameter
|
Can customized it according to your local power
|
||
Package Size (mm)
|
1070 (L)×1020(W)×930(H)
|
800 (L)×900(W)×800(H)
|
1270 (L)×1020(W)×1000(H)
|
Total Weight(Kg)
|
180
|
120
|
200
|

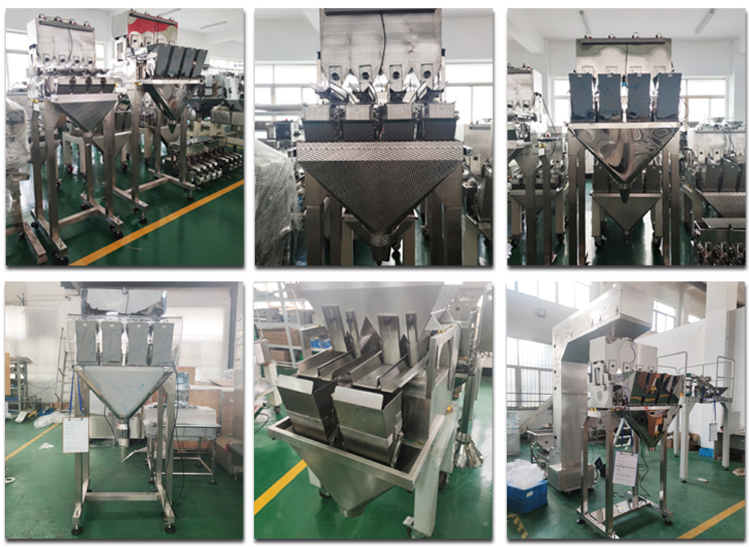

Our Cases
